Release Notes

v1.1.0-beta

Introduction

This release enhances performance and functionality across key nodes such as Generator, Guide, Clump, Noise, and Trim, with significant speed improvements, undergoing multiple redesigns over a 14-month period for enhanced performance. New nodes like Mirror, Scale, and Curves to Spline have been added.

A manual Freezing System minimizes redundant calculations, improving sculpting processes and procedural modeling speed.

Users can now sculpt directly on frozen Guides and set up animated surface deformation more easily.

Additionally, a new Dynamics node introduces experimental physics simulation capabilities, offering users adjustable parameters for gravity, stretchiness, damping, stiffness and collision.

Various structural UI design improvements have also been implemented.

Freezing System

Manual freezing of generated splines (hair follicles) within the Generator now minimizes redundant calculations, providing a substantial performance boost by eliminating the need for repeated spline generation on each dependency graph update. The Freezing System extends to Guide, Noise, Curl, and Curves to Splines nodes, making the hair deformation during sculpting and procedural modeling faster.

Freezing - Sculpt on Frozen Guides

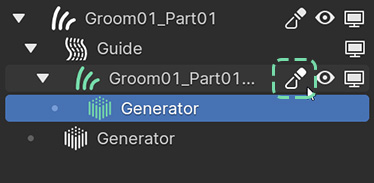

object, entering sculpt mode via the Sculpt Mode Toggle button enables immediate sculpting. This action freezes the Generator, rendering most parameters inaccessible (grayed-out).

Freezing - Key Features

Sculpting: Ability to sculpt on frozen splines.
Single generation: Splines are generated and “made real”, eliminating the need for recalculations.
Reduced calculation times: Precalculated attributes are automatically stored on Hair and Guide objects upon freezing selected nodes, eliminating repetitive noise or interpolation algorithm computations.

Note

Scene size significantly increases due to the frozen splines being “baked” directly into the hair object, rather than being procedurally generated. This is particularly the case in scenarios with multiple Medusa Nodes’ grooms containing hundreds of thousands of splines.

Simulation (Experimental)

A new Dynamics node has been introduced, utilizing a physical dynamics solver using Verlet Integration. While not entirely realistic, it provides functionality comparable to simpler game physics engines.

Dynamics - Key Features

Users have the ability to adjust various parameters such as gravity, stretchiness, damping, and stiffness using different Mask Groups.
Additionally, enabling the Collision with Emitter Object option allows users to choose between the emitter object or specific mesh objects within a designated Collision collection.
Furthermore, the physics simulation accounts for surface deformations of the emitter object, ensuring that changes in its surface influence the simulated hair accordingly.

Note

Please keep in mind that the Dynamics node is experimental and may exhibit some bugs.

Surface Deformation

Enabling hair deformation based on animated surfaces deformation has been a highly requested feature, previously lacking and cumbersome to configure.

Now, surface deformation is easily activated by selecting the Surface Deform option in the Generator (ensure to enable it on the Guide Object’s Generator as well).

Note

Surface Deform option has some additional calculation overhead; avoid enabling it unless necessary.

New Nodes

New Utility nodes, such as Curves to Spline, Mirror, Scale, and Resample Hair, have been added. These nodes might be useful in some specific scenarios.

Node Improvements

Generator Node

The freezing system caches generated splines and allows sculpting.
Speed improvements are observed with the Generator’s Poison Disk Distribution, especially when used with frozen splines.
Additionally, the Interpolation Object option has been added.

Interpolation Object Option

Now, users can select an interpolation object within the scene, enabling the generation of splines replicating the shape and length of the chosen hair object.

Clump Node

The Clump deformer properties have been reorganized in an upgraded sub-panel UI, improving user experience.
Now it efficiently distributes higher amounts of clumps, reducing calculation times.
Introducing Clump Cell Randomness brings variability to clump thickness for a more realistic appearance.
The Volumize parameter in the Misc sub-panel mimics Blender’s Clump Hair Curves modifier’s clump shape.

Guide Node

The Guide deformer now calculates faster, particularly when used with Region Maps (testing required).
Freezing stores pre-calculated data, enabling faster hair deformation processes.

Improved Groom Initialization

The initial New Groom pop-up displays approximate spline and control point counts, starting with a default distribution of around 10,000 splines for any chosen mesh geometry. Also, the thickness and length of distributed splines are calculated based on emitter geometry’s surface area and dimensions, allowing for better adaptability across various geometries.

UI and Functionality

The separation of the new Medusa Nodes Properties panel from the Medusa Nodes Hierarchy optimizes vertical screen space, enabling users to efficiently adjust parameters of larger nodes.

Icons: New icons differentiate node types in both the Hierarchy and Properties panels, as well as in the Mask Group Options menu. Main hierarchy icons remain white, while secondary hierarchy icons are green, aligning with the default color of guides, for clear visual organization.
